Regular price $33.99 Sale price $42.99 Unit price per

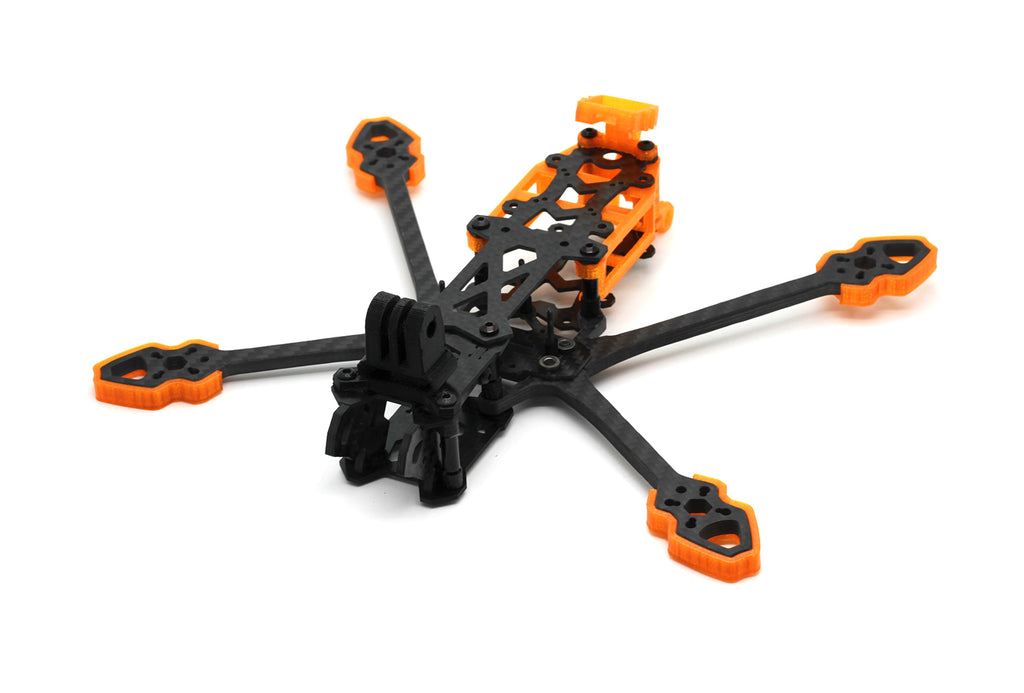

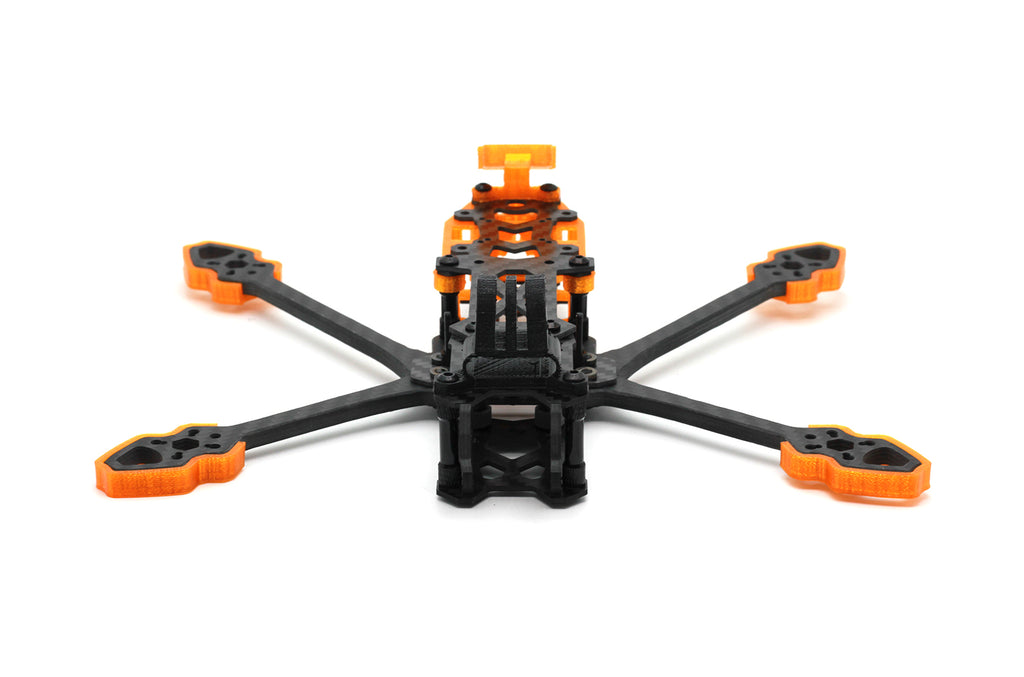

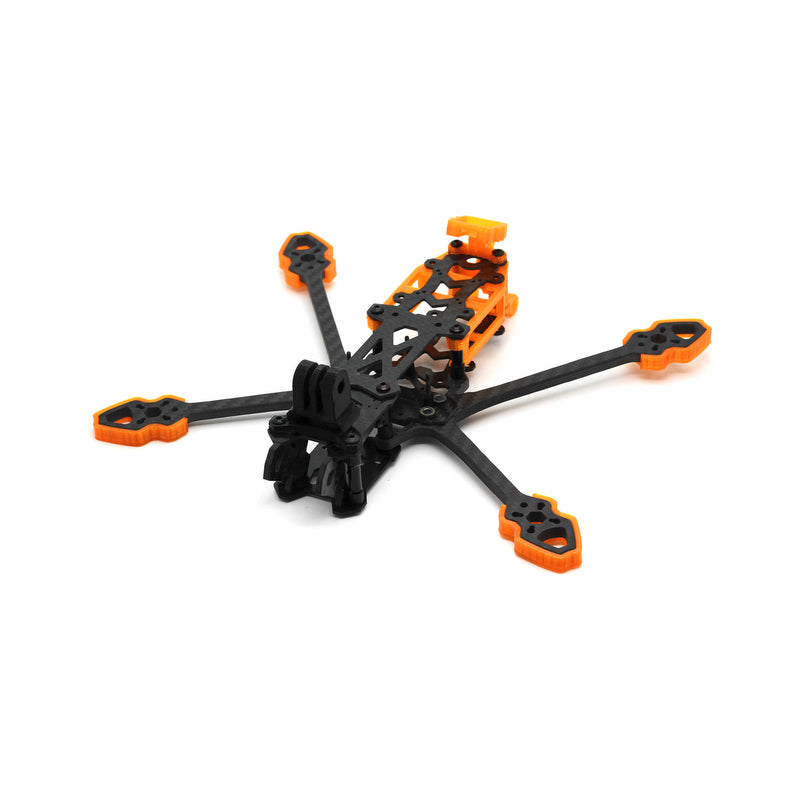

HBFPV FK5 Frame KIT 5-5.1 inch DC type FreeStyle Long Range RC FPV Drone DJI Air Unit Caddx Polar Vista 20x20 25.5x25.5 2004 2203.8 2204 Motor

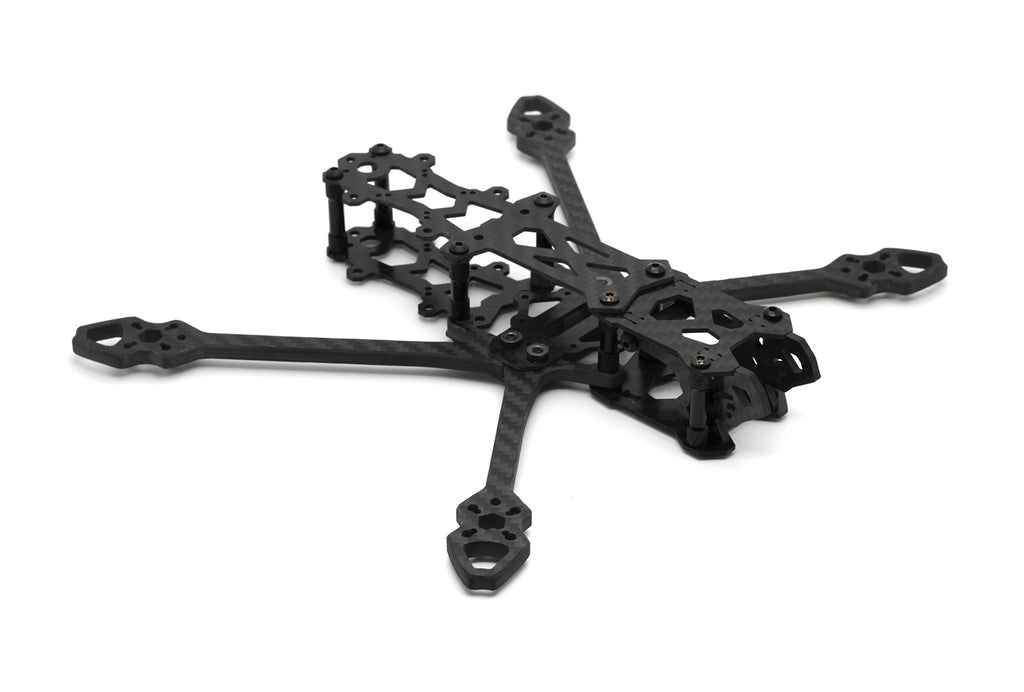

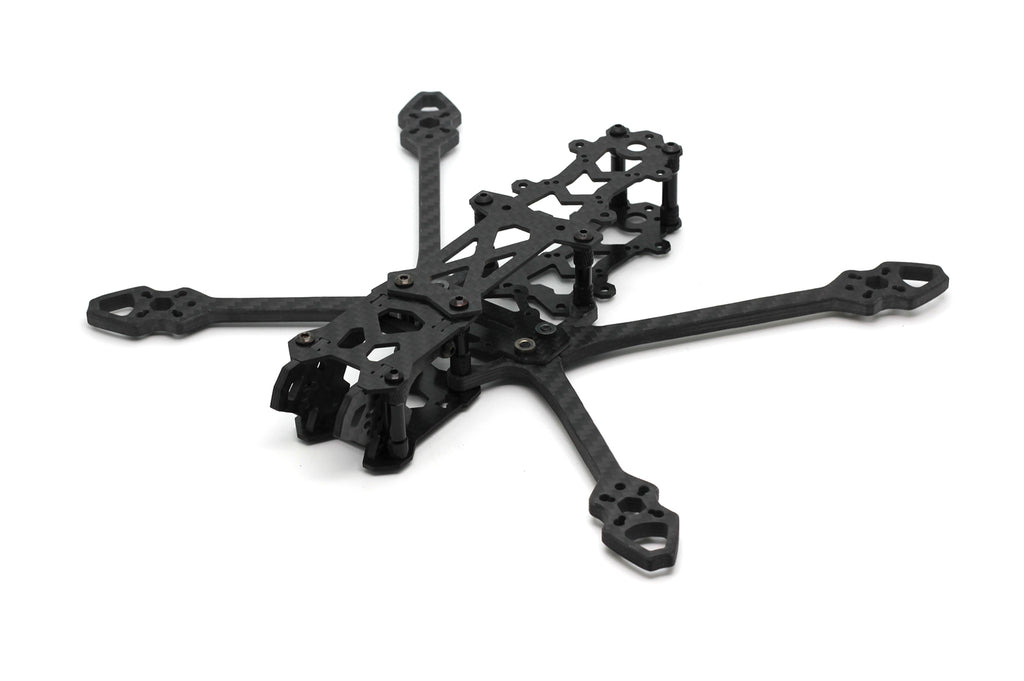

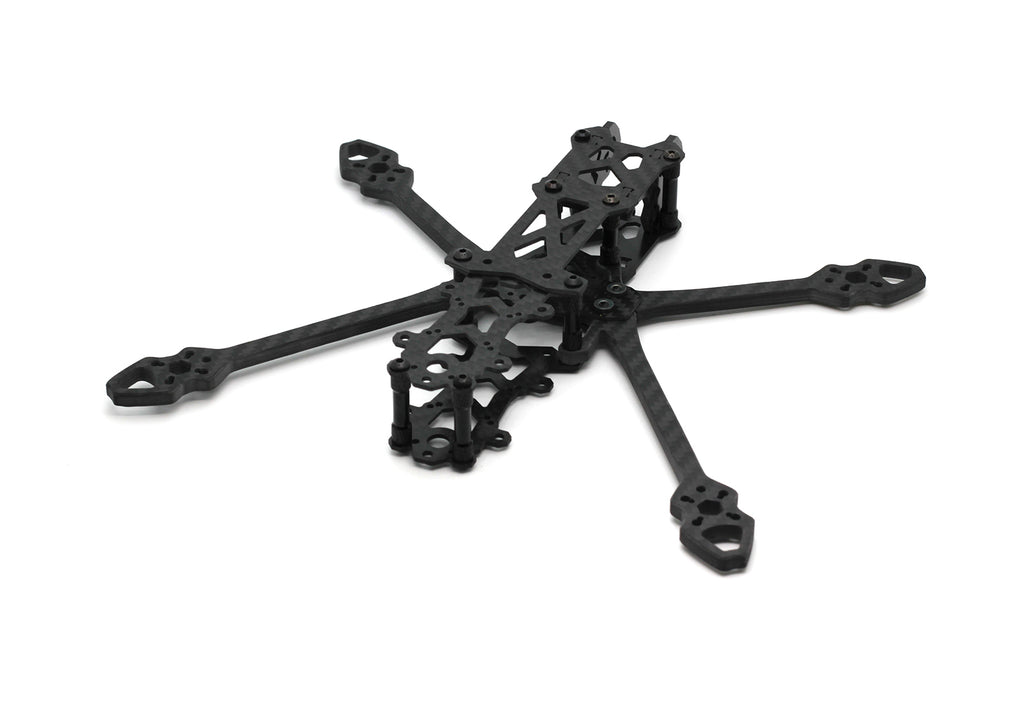

Model: FK5 v1.7
Wheelbase: 218mm

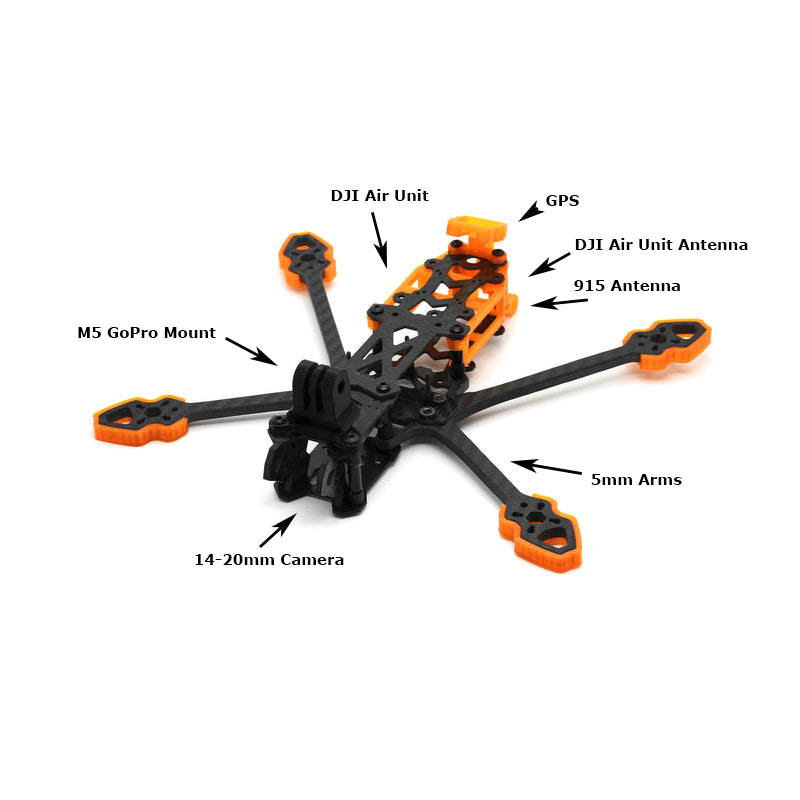

CF Thickness: arm(5.0mm), top(1.5mm), base(1.5mm), side(2.5mm),
CF material: 3K Pure Carbon Fiber
Camera Mount: 14/19/20mm compatible
FC Mount: 20x20mm/M2, 25.5x25.5/M2
VTX Mount: 16x16mm/M2, 20x20mm/M2, 30.5x30.5/M3
DJI Air Unit Mount: Available
Caddx Vista Mount: Available
Motor Mount: M2xD-12mm, M3xD-16mm

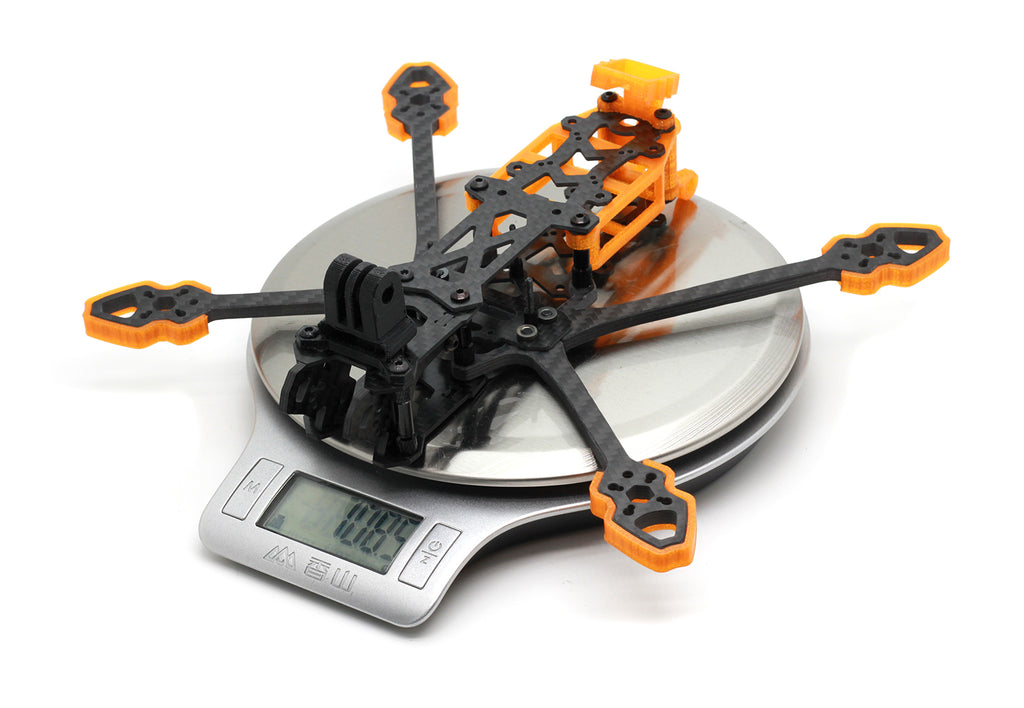

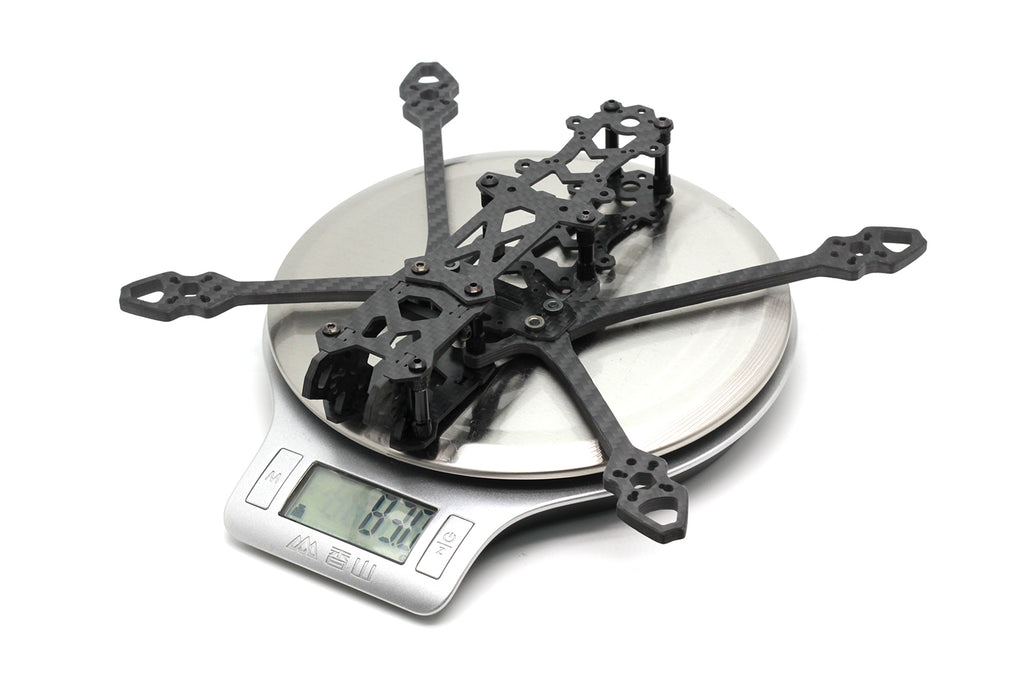

Weight: approximately 83g (without TPU parts)

Recommended Devices:
Motor: MISS2004/G2004
Prop: GF5126-2/GF5130-3
FC+ESC: MF740 Mini Tower(F722+40A)/AH740 AIO board(H7+40A)
VTX: DJI Air Unit/Caddx Vista Polar

Package Lists:

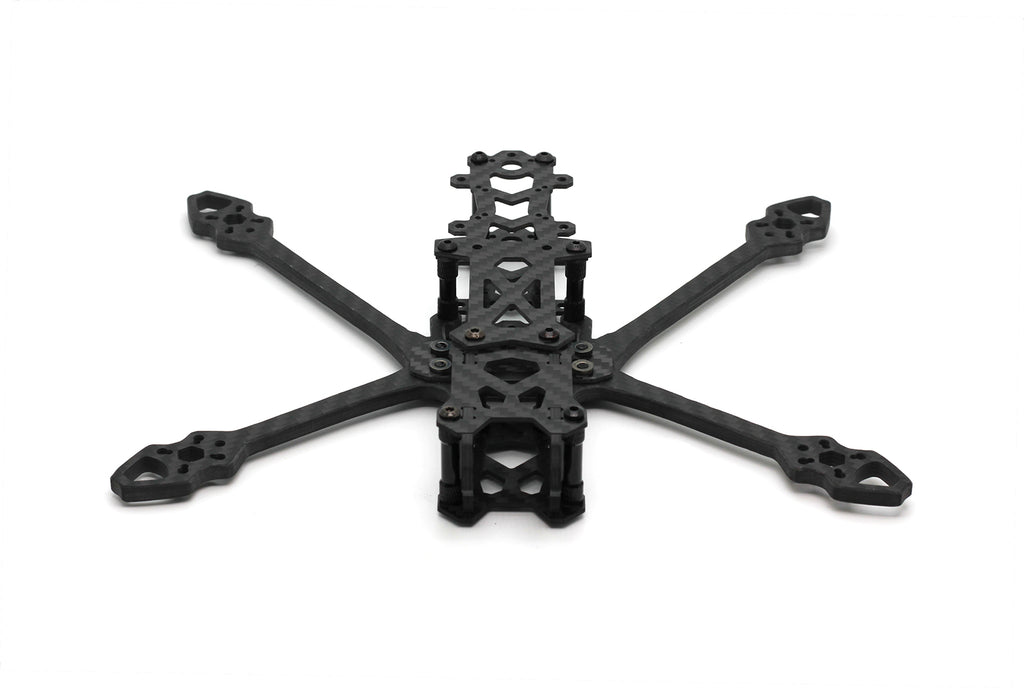

1x Frame KIT
1x General Tools Pack
1x User card

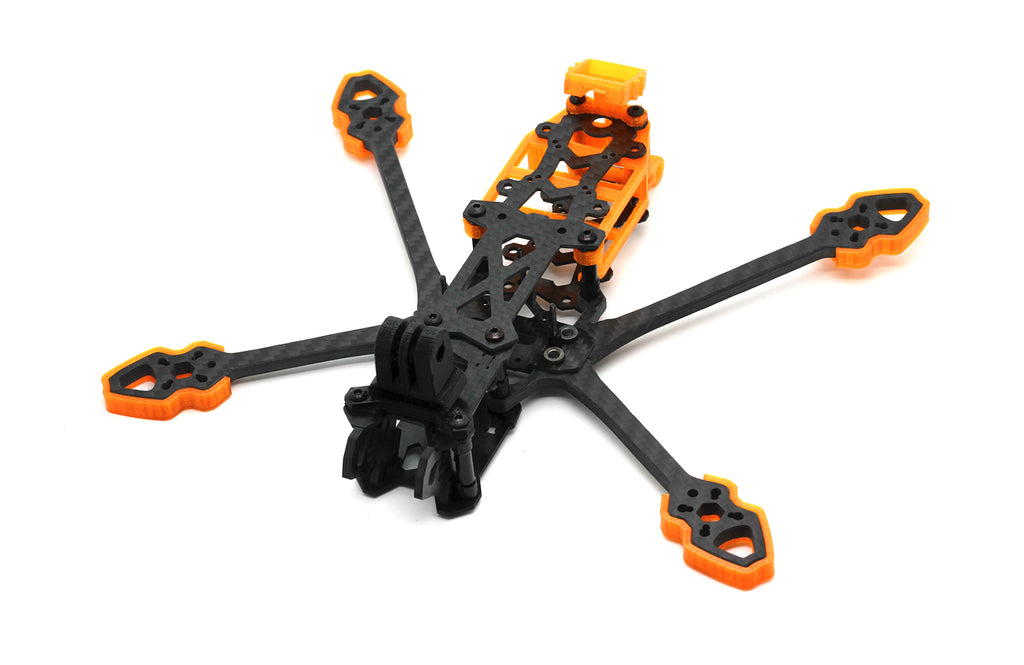

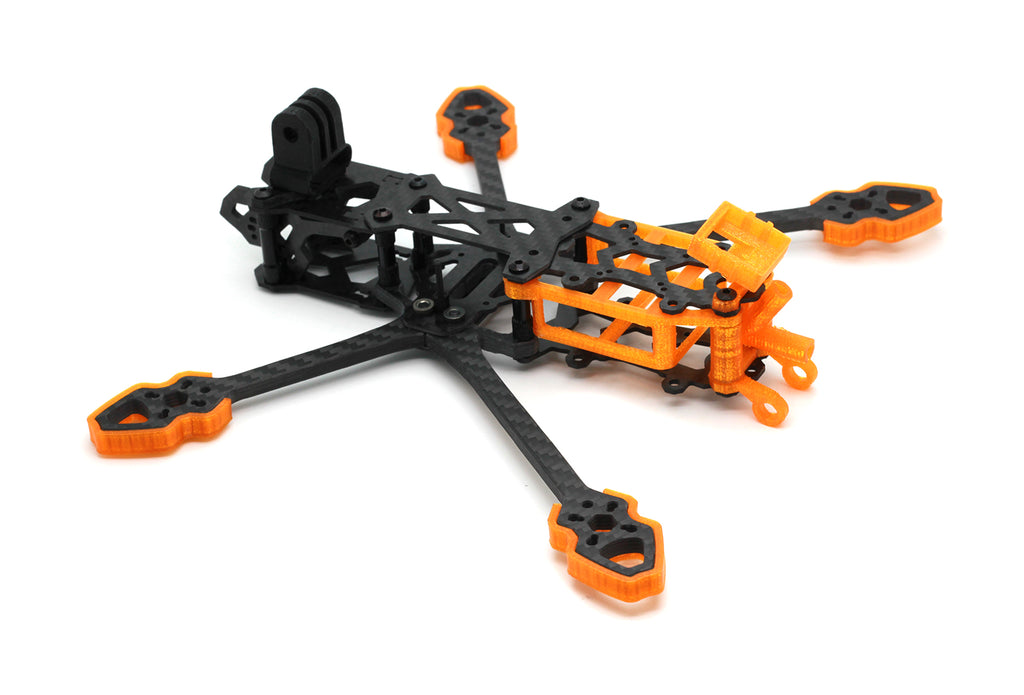

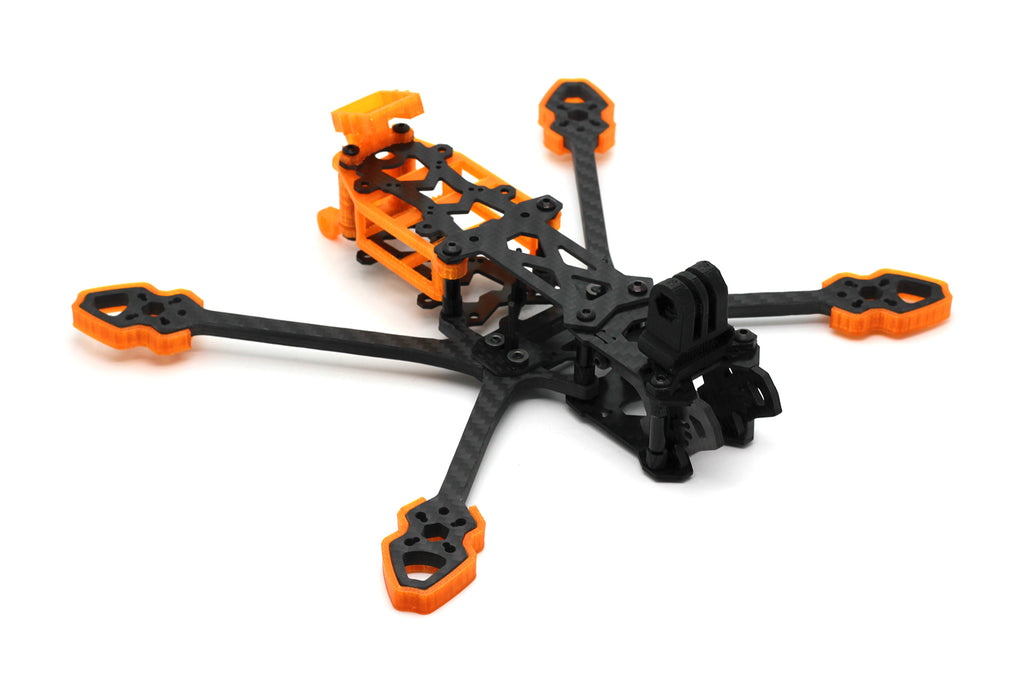

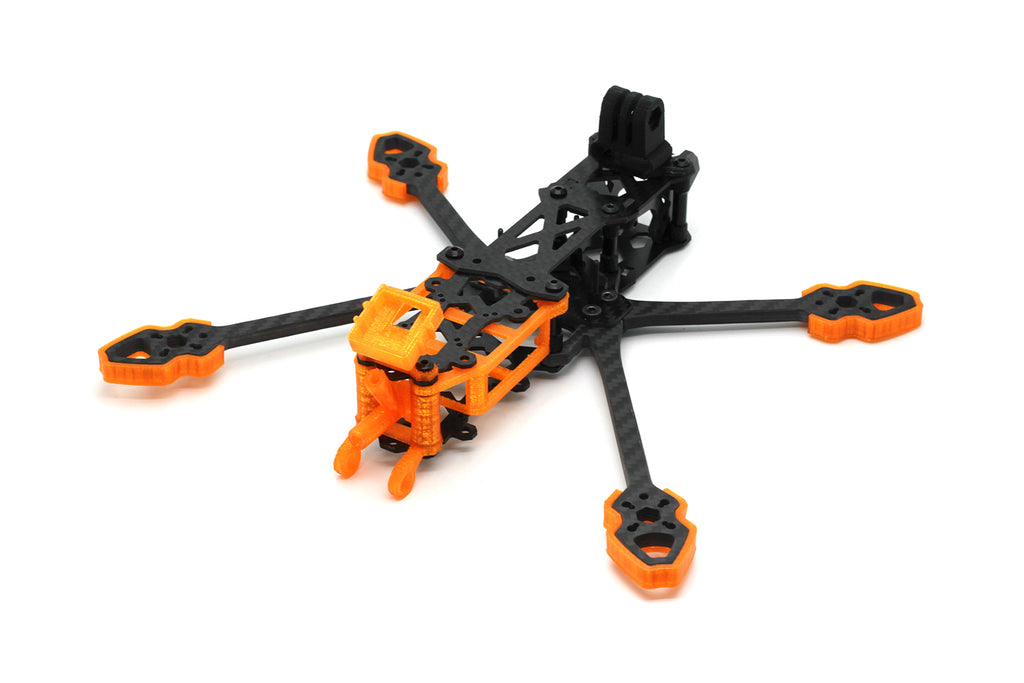

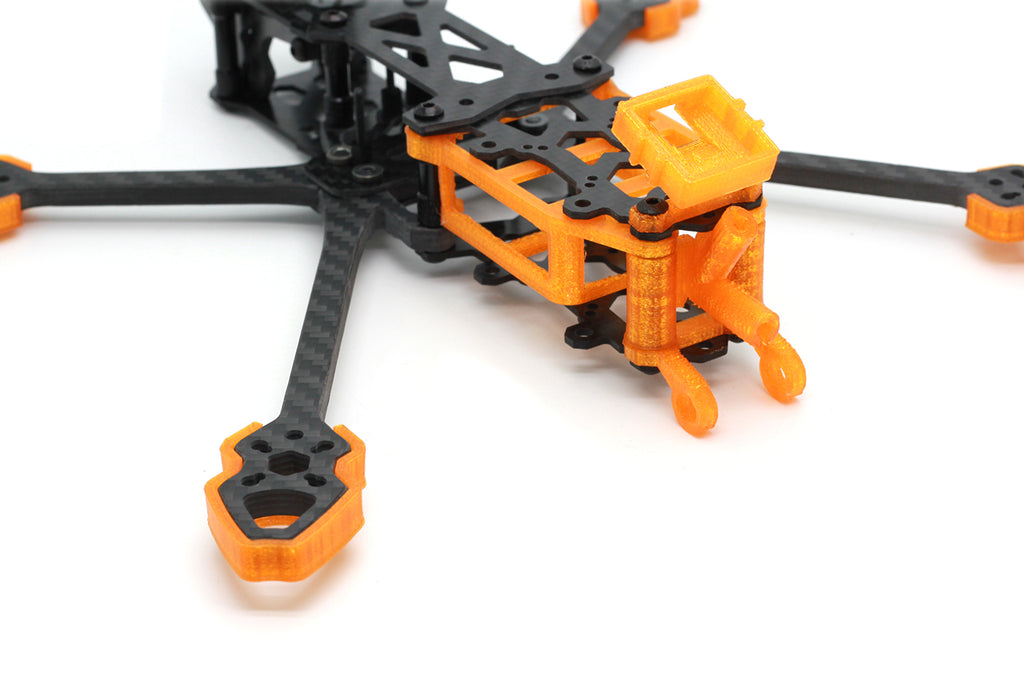

With TPU Parts+:
4x TPU Motor Jackets
1x TPU Adjustable GoPro Mount
1x TPU DJI Air Unit Mount
1x TPU DJI Air Unit Lightweight Antenna Socket
1x TPU 915/2G4 T-type Antenna Socket
1x TPU GPS Mount
