[ Specification ] Brand Name: HBFPV Model: XF40 GT Item Name: [ XF40-GT ] 3S Brushless 1.6inch 40mm Prop F4 12A FPV Racing Drone EOS2 200mW OSD VTX Max Prop: 40mm (1.6 inch) Wheelbase: 77mm Thickness of Carbon Fibre: 1.0mm Material of Ducts: Enhanced PP Material of Canopy: Enhanced Nylon Plastic Power Supply: 2-3S Weight: 47g (without BAT) Hovering Throttle: 30-33% (with 3S 300mAh) Recommend BAT: GNB 3S 300mAh / GNB 3S 350mAh FC: F4 2-4S 5V 2A BEC built-in OSD ESC: 12A (2-4S ESC) BLHeli_S 4in1 DShot600 Motor: MP03-9400KV (2-3S) Prop: GF1636-4 40mm 4-blade propeller Cam: EOS2 1200TVL camera…
# Ultra tiny, advanced PCB layout and super light. # Reliable performance without overheating ESC mosfets or smoking whoops! # Most powerful micro design with all the performance it needs. # 2-4S input voltage and 12A ESC continous current! # 4-corner soft mount pattern to reduce noise and damp impacts. # Well arranged hardware and strategically placed gyroscope, aimed to fly not to fix! # Max 200mW VTX power output on the UFL antenna port. # 2-4S ESC with current sensing on the market! [ IF412V-FC ] Size: 28.5x28.5mm Input Voltage: 2S-4S Installing Hole: 25.5x25.5mm/M3 MCU: F411 Gyro: ICM20689 OSD:…
[ Specification ] Brand Name: HBFPV Model: FA70 GT Item Name: [ FA70 GT ] 3S Brushless 2.8inch 70mm Prop F4 12A FPV Racing Drone EOS2 200mW OSD VTX Max Prop: 70mm (2.8inch) Wheelbase: 108mm Thickness of Carbon Fibre: 2.0mm Material of Ducts: N/A Material of Canopy: Enhanced Nylon Plastic Power Supply: 2-3S Weight: 57g (without BAT) Hovering Throttle: 25-27% (with 3S 300mAh) Recommend BAT: GNB 3S 300mAh / GNB 3S 350mAh FC: F4 2-4S 5V 2A BEC built-in OSD ESC: 12A (2-4S ESC) BLHeli_S 4in1 DShot600 Motor: HBFPV C1105-6500KV (2-3S) Prop: HQ 65mm 2-blade propeller Cam: EOS2 1200TVL camera VTX:…
[ Specification ] Brand Name: HBFPV Model: FF65 GT Item Name: [ FF65-GT ] 3S Brushless 2.5inch 65mm Prop F4 12A FPV Racing Drone EOS2 200mW OSD VTX Max Prop: 65mm (2.5inch) Wheelbase: 108mm Thickness of Carbon Fibre: 2.0mm Material of Ducts: N/A Material of Canopy: Enhanced Nylon Plastic Power Supply: 2-3S Weight: 47g (without BAT) Hovering Throttle: 24-26% (with 3S 300mAh) Recommend BAT: GNB 3S 300mAh / GNB 3S 350mAh FC: F4 2-4S 5V 2A BEC built-in OSD ESC: 12A (2-4S ESC) BLHeli_S 4in1 DShot600 Motor: MP03-7000KV 2-3S Prop: HQ 65mm 2-blade propeller Cam: EOS2 1200TVL camera VTX: Pit-25-100-200mW with…

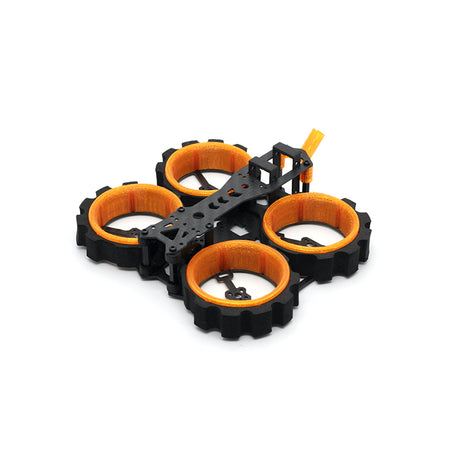

Specification: Prop Duct: Enhanced PP Prop: 35mm props Motor: 0603 0605 0703 0802 0803 Installed Hole: 16x16mm(For Tower), 25.5x25.5mm(For AIO) CF thickness: 3K CF 1mm Canopy: PP, 14x14mm M7 Camera (TW25/199C) Battery Holder: Nylon
Specification: Prop Duct: Enhanced PP Prop: 31mm props Motor: 0603 0605 0703 0802 0803 Install Hole: 16x16mm(For Tower), 25.5x25.5mm(For AIO) CF thickness: 3K CF 1mm Canopy: PP, support 14x14mm M7 Camera (TW25/199C) Battery Holder: Nylon
Specification: Item name: HBX64 1-2S micro whoop FPV racing drone Max Prop: 31mm (1.2inch) Wheelbase: 64mm Weight: about 24.5g (without battery) Rec.flight weight: <40g (with battery) Flight time: 3-6mins (2S 250-450mAh) Flight controller: 1-2S F3, built-in OSD & smartaudio, OMBS firmware ESC: 1-2S 10A BLHeli_S Dshot600 Motor: 1-2S S0802 16000KV Propeller: 31mm 4-balde VTX: 0/25/100/200 48CH Camera: 800TVL FOV 150° Receiver: PNP without receiver/ BNF FS-RX2A/ BNF DSMX Pro/ BNF FrSky D8 receiver (option) Package included: 1x HBX64 1-2S micro whoop FPV racing drone PNP/BNF VTX user manual: click here Smart Audio OSD manual: click here
Brand Name: EWRF Item Name: e7087U VTX Main Features -Adjustable 4 modes:25mW/100mW/200mW/OFF -Betaflight/Cleanflight OSD configuring parameter -Support SBUS configuring parameter -Clean powerup and channel switching without interference to others -Miniature and light weight design English Manual for EWRF e7087U, Click Here PDF Manual Please click here Specifications of EWRF e7087U: Frequency: 5.8G Channel: 48CH Transmitting Power: 25mW/100mW/200mW/OFF(Pitmode) Power Supply: DC5V(Special Edition) Weight: 2.2g(Including antenna weight 0.8g) Size: Design for RunCam MicroSwift/Caddx F2/Turtle Frequency Table Note: - Make sure that there is enough space for airflow when installing the module on the drone in case the overheating protection starts to reduce…
The Caddx Turtle allows both a live FPV feed and an HD DVR, without the weight of a heavy HD action camera. The Turtle V2 brings many improvements over the original, including a new lens, audio, better mounting options, and a better image. Caddx has introduced a new competitor in the HD FPV camera category. The Caddx Turtle is a 1080p 60fps capable mini fpv camera split into two parts, the FPV camera and an HD DVR board. Users who are constantly deciding whether or not to use an HD action camera may find this option perfect for their needs,…
